سنسور جک فستو FESTO SME
GERMANY
توضیحات بیشتر

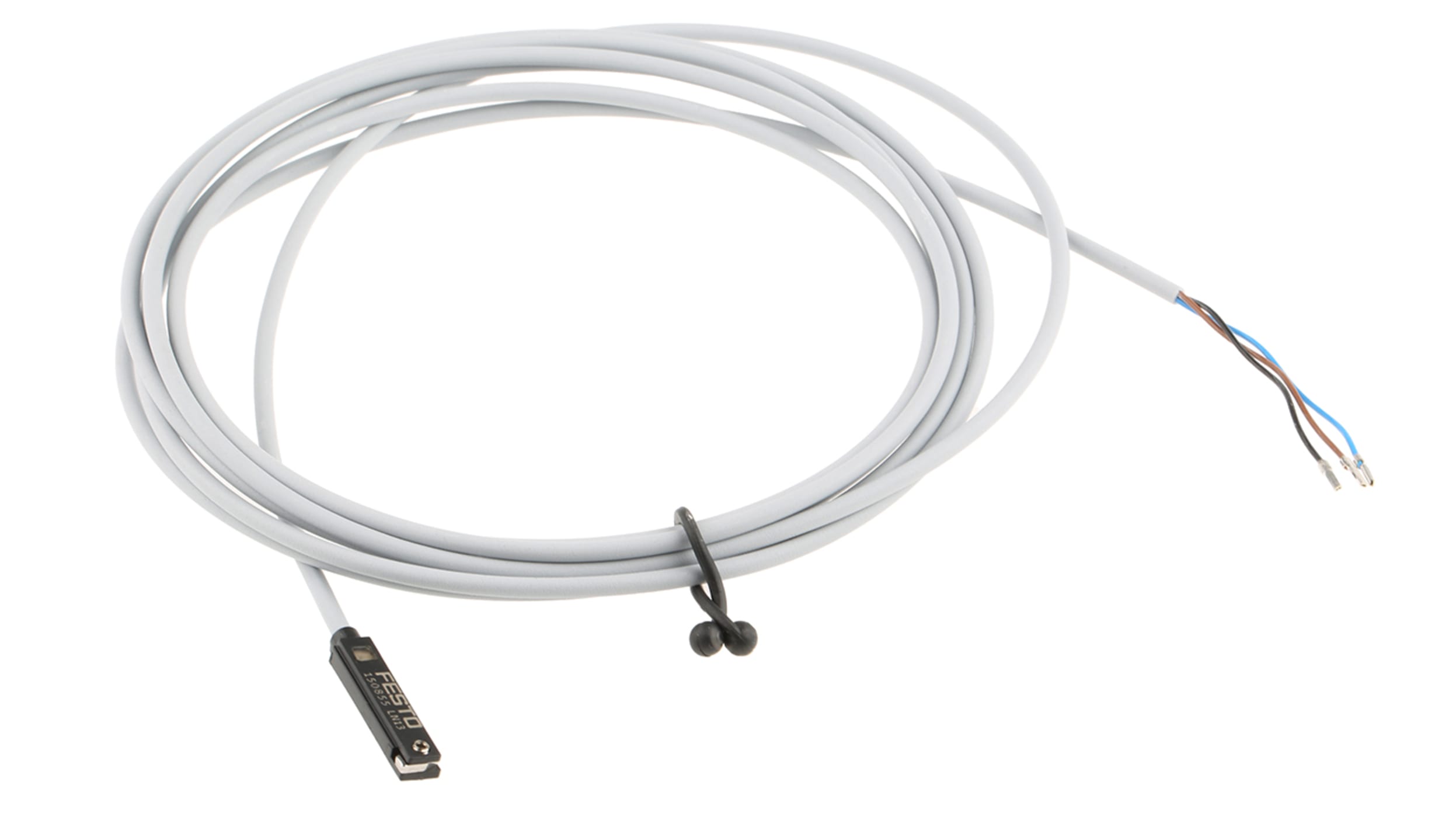

سنسور فستو SME-8-K-LED-24 یکی از سنسورهای مغناطیسی بوده که حساس به اهنربا می باشند.
سنسور جک فستو از کیفیت و دقت بالایی برخوردار می باشد و طول عمر بالایی دارد به همین دلیل از رایج ترین سنسور ها در سیستم پنوماتیک می باشد.
دارای کابل دو متری و سه سیم می باشد و در محدوده ولتاژِی 12 تا 30 ولت کار می کند.
نمایشگر سیگنال تعبیه شده در سنسور به صورت LED نصب شده است.
سنسور فستو SME-8-K-LED-24 در دمای 4- تا 60 درجه سانتی گراد دمای محیط می باشد.
اطلاعات مختصر سنسور فستو
- حداکثر فرکانس سوئیچینگ 800 هرتز
- حداکثر جریان خروجی 500 میلی امپر
- امتیاز تماس AC 10 DC
- افت ولتاژ صفر ولت
- گشتاور سفت شدن 0.2 نیوتن متر
- وزن سنسور فستو 30 گرم
- رنگ LED زرد
- ولتاژ عایق 50 ولت
- کلاس حفاظت IP65-IP67
نوان ویژگی | مقدار ویژگی |
---|---|
Design | For T-slot |
Complies to standard | EN 60947-5-2 |
Permission | CCC |
CE certificate (see declaration of conformity) | to EU EMC directive |
Material information | Copper and PTFE-free |
Measurement principle | Reed magnetic |
ambient temperature [°C] | -30 to 60 |
Control output | Bipolar contact |
Switching element function | NO contact |
Reproducibility of the switching value | ± 0,1 mm |
Switch on time [ms] | 2 |
Switch off time [ms] | 0,03 |
Max. switching frequency [hz] | 500 |
Max. output current [mA] | 120 |
Max. switching capacity AC [Voltampere] | 10,0 |
Max. switching capacity DC [W] | 10,00 |
Voltage drop [V] | <= 3,9 V |
Short circuit resistance | no |
Overload resistant | Not available |
Operating voltage range AC [V] | 3 to 230 |
Operating voltage range DC [V] | 3 to 230 |
Reverse polarity protection | no |
Connection outlet direction | along |
Cable length [MTR] | 2,5 |
Cable sleeve material | TPE-U(PUR) |
Fastening type | clamped in t-slot |
Torque [Nm] | 0,2 |
Product weight [g] | 39,0 |
Housing material | PET |
Switching status indicator | LED yellow |
Ambient temperature for moving cable placements [°C] | -5 to 60 |
Protection category | IP68 |
Surge voltage strength [kV] | 4,0 |
Degree of contamination | 3 |
Residual current [mA] | 0 |
Electrical connection 1, connection type | cable |
Electrical connection 1, connection technology | Open end |
Electrical connection 1, number of pins / wires | 2 |
Weight | 39,0 g / Pcs |
GTIN | 4052568070472 |
Customs duty number | 85365080 |
RoHS compliant | Yes |
Manufacturer | Festo |
Document | Group data sheet: SMT/SME-8 (english) , Data sheet |
