حفاظت از سطح: پوشش بدون کروم (VI) عرض/اندازه اسمی: DN6/04 (4x) جریان اسمی: 20 لیتر در دقیقه PN (بار): 250 با این کوپلینگ، چندین خط را می توان تنها با یک حرکت جفت کرد. مخلوط کردن خطوط دیگر امکان پذیر نیست و از ورود هوا و خاک جلوگیری می شود. در نسخه “2P”، کوپلینگ را می توان تحت فشار باقیمانده جفت کرد. در نسخه “3P”، کوپلینگ را می توان تحت فشار کامل انجام داد. با تعویض درج ها در دوشاخه کوپلینگ، یک کوپلینگ “2P” را می توان به یک کوپلینگ “3P” تبدیل کرد.
داده های فنی
قطر اسمی: DN 06
سایز: 04
رشته اتصال: 1/4 اینچ BSP
جریان اسمی (l/min): 20
پ.ن (نوار): 250
مناسب برای / (نوع):
محدوده تحویل:

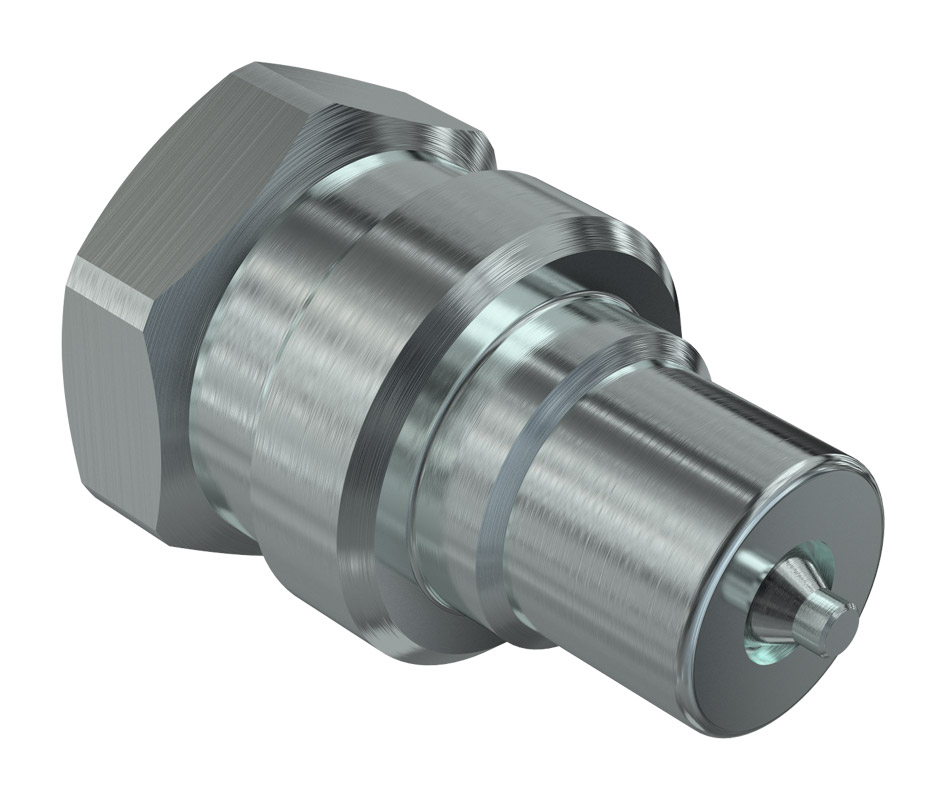

کانکتور هیدرولیک سریعتر IG 1/4 اینچ DN 06 V-No. KIT2FNP14GAS M
